Clear Waves

RF Spectrum Analyzer and Frequency Coordination Software

Welcome to Clear Waves -- a new PC-based, diagnostic tool specifically designed for the wireless professional audio and video industries. Clear Waves is the industry's first, PC-based tool to offer RF spectrum analysis, intermodulation analysis and automatic charting of open white space (open RF frequency) for use with wireless microphones, in-ear monitors, remote control, security, access control, etc -- all built into a single product. Clear Waves' unique combination of features -- providing the functionality of an RF Spectrum Analyzer working together with an Intermodulation Analysis software module -- make it an extremely versatile and powerful tool that extends beyond the bounds of traditional RF analyzers.

Clear Waves can use either the Signal Hound or RF Explorer spectrum analyzer for data acquisition.  It turns data collected from these analyzers into graphical charts, displays in real time and performs intermodulation analysis -- enabling users to more readily visualize the RF environment, coordinate channel assignments for wireless transmitters, monitor RF signals, troubleshoot RF issues, and detect sources of RF interference.

Clear Waves' features include the following:

Overview

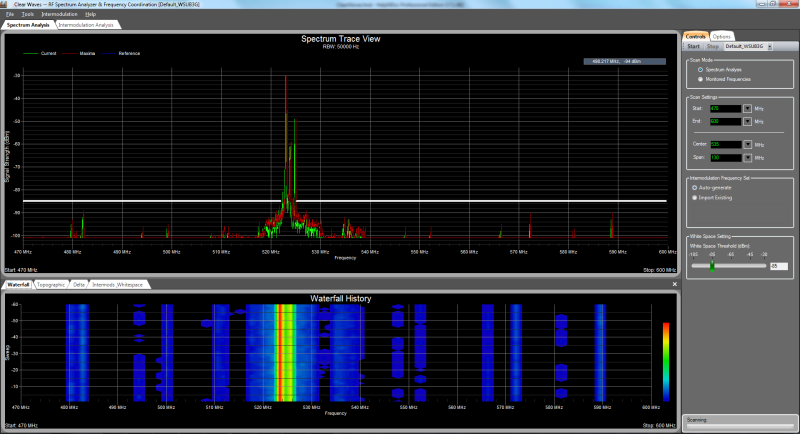

Default View

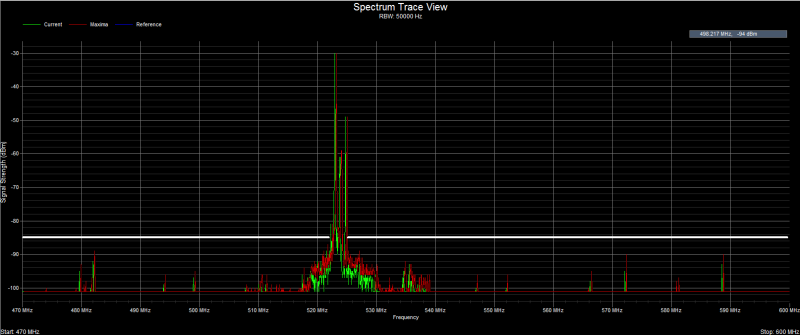

Spectrum Trace View

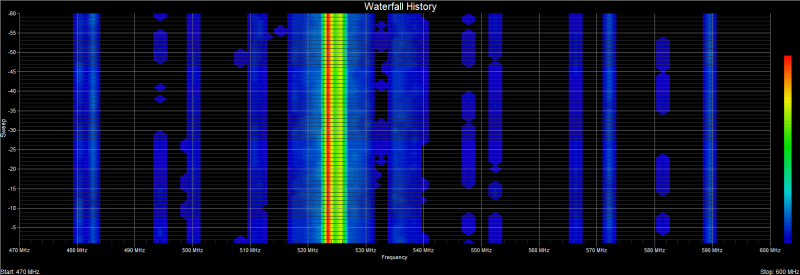

Heatmap / Waterfall History



Monitored Frequencies

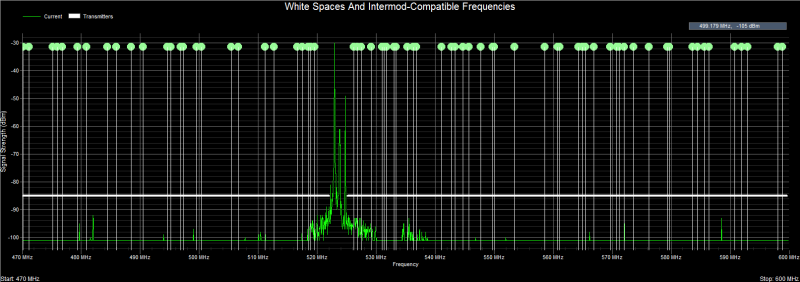

White Spaces and Intermod-Compatible Frequencies

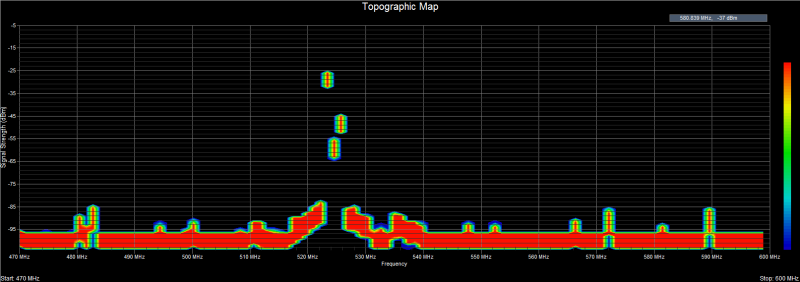

Topographic Map

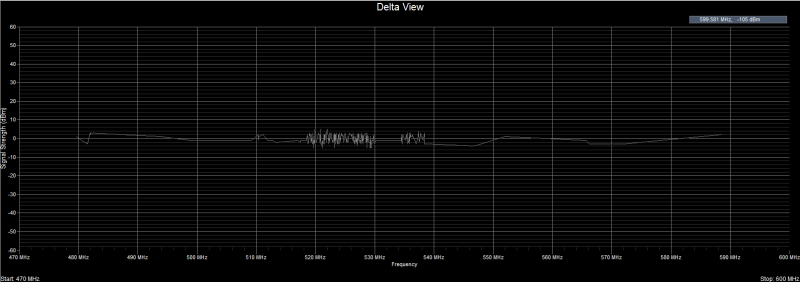

Delta Trace
