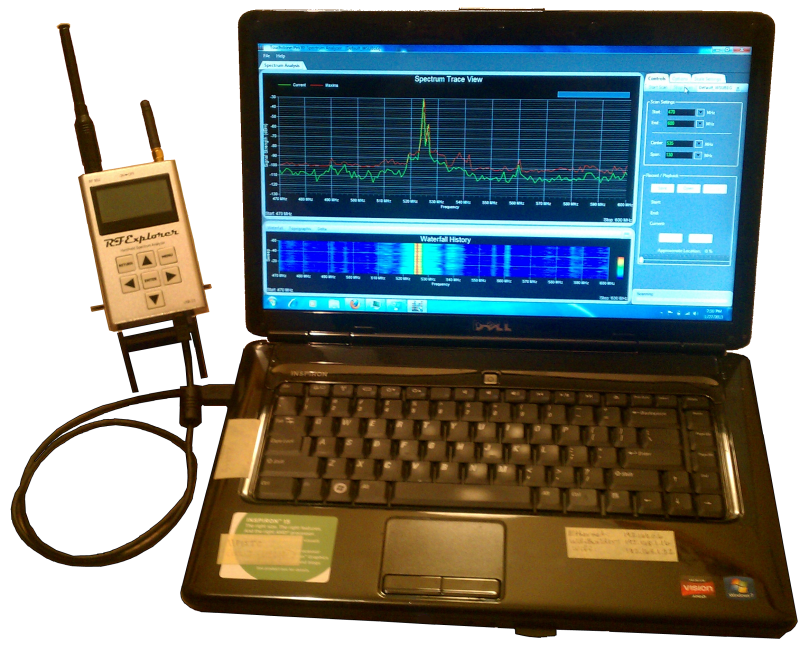

Touchstone software turns data collected from RF Explorer spectrum analyzers into graphical charts and displays in real time, enabling users to more readily visualize the RF environment, monitor RF signals, troubleshoot RF issues, and detect sources of RF interference.

There are two different variations of the software: Standard and Professional. The table below summarizes their differences:

Feature	Touchstone	Touchstone-Pro
Cost	Free	$49 USD
Supported RF Explorer Models	All	All
Simulation Mode	Yes	Yes
Built-in & User-Defined Profiles	Yes	Yes
Adjustable RBW	Yes	Yes
Save Traces in XML or CSV Format	No	Yes
Record/Playback mode	No	Yes
Generate PDF Reports	No	Yes
Zoom mode	No	Yes
Monitored Frequencies Mode	No	Yes (160)
Monitored Bands Mode	No	Yes (160)
Compare Two Traces	No	Yes
Show Reference Trace	No	Yes
Number of Diagnostic Charts	2	5
Spectrum Trace	Yes	Yes
Heatmap / Waterfall Display	Yes	Yes
Topographic Map	No	Yes
Threshold Trace	No	Yes
Delta Trace	No	Yes

Overview

Default View

Spectrum Trace View

Heatmap / Waterfall History

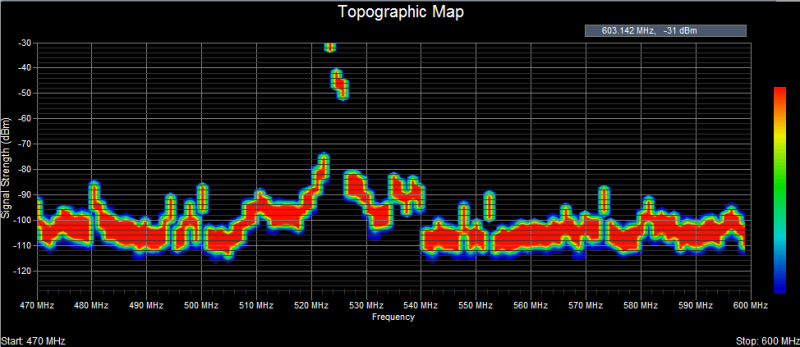

Topographic Map (Touchstone Pro-only)

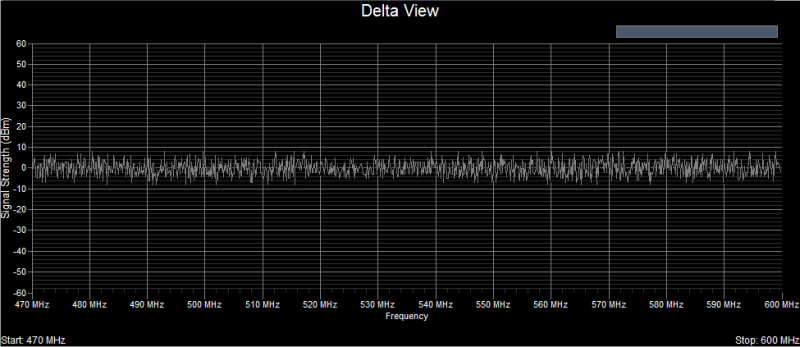

Delta Trace (Touchstone Pro-only)

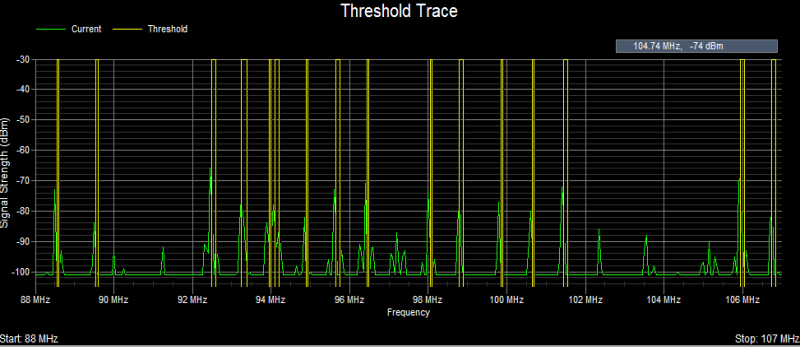

Threshold Trace (Touchstone Pro-only)

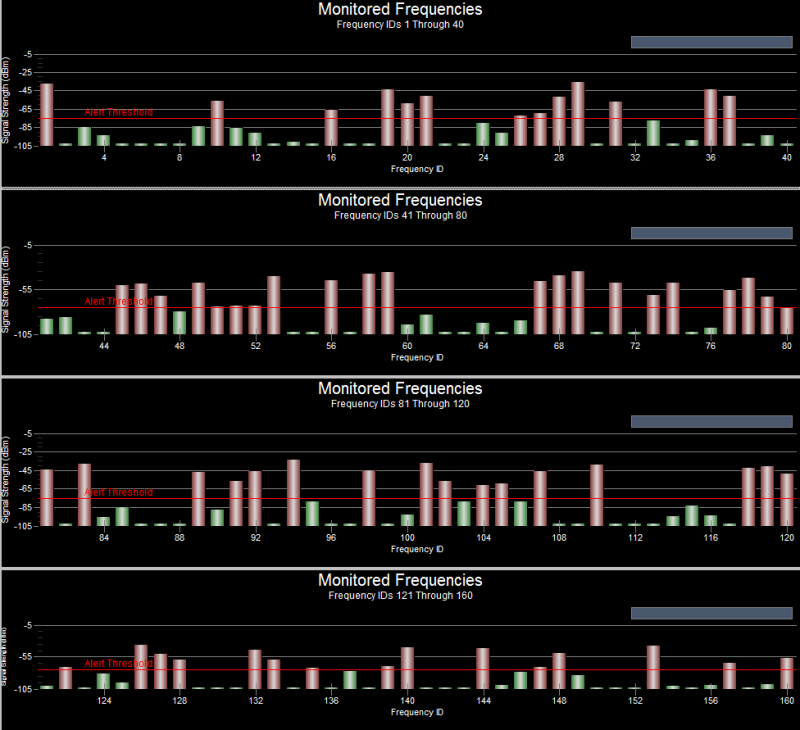

Monitored Frequencies (Touchstone Pro-only)

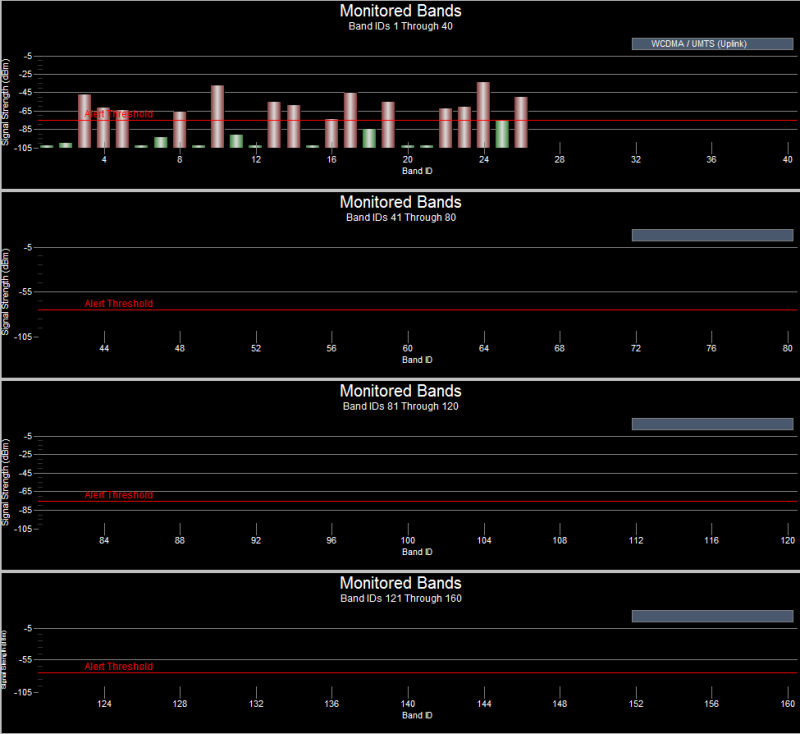

Monitored Bands (Touchstone Pro-only)
